H13---350CC ATV
  • OVERVIEW
  • SPECIFICATION
  • ENGINE

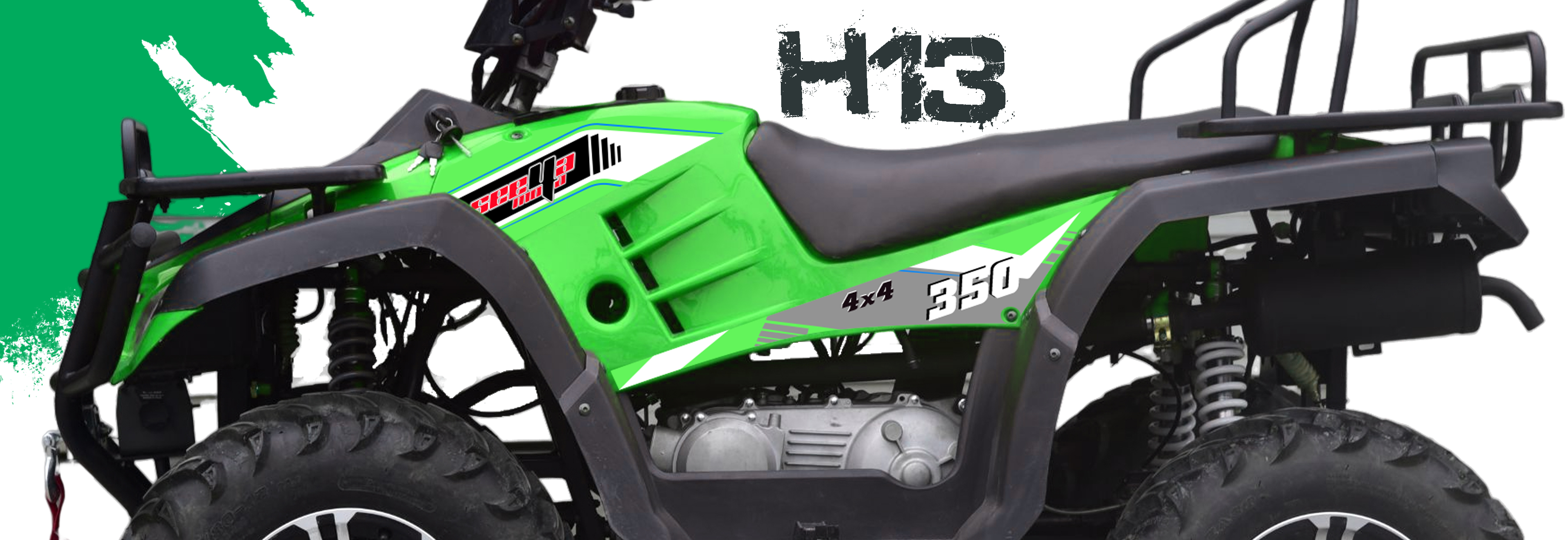

MODEL:H13

350CC CVT ATV WITH EFI, 4X4 4WD

MODEL NO.: H13
Engine 312cc Water-cooeld, 4 Stroke,Single Cylinder, CVT, EFI
Starting Method Electric
Max Power(KW/RPM) 15.2KW/7100rpm
Max Torque(NM/RPM) 28N.M/5700rpm
Fuel Tank Capacity 14L
Fuel 93# Unleaded Gasoline
Transmission H-L-N-R
Drive System Shaft drive
Throttle Control Thumb Throttle
Maximum Speed 75km/h+
Front Brake Hydraulic Disc Brakes
Rear Brake Hydraulic Disc Brakes
Maximum Load 200 kg
Front&Rear Wheel Size

25x8-12'' / 25x10-12''
Spark Plug A7RTC
Dimension(LXHXW)

BIKE:203.5X125X120 (CM)

BOX:214X129X87 (CM)
Seat Height 93 CM
Weight:

Gross: 320 kg;

Net: 295 kg
Container Loading Qty 27PCS (40"HQ)
H.S CODE 8703101100
